Power Scooter - Transport AF+

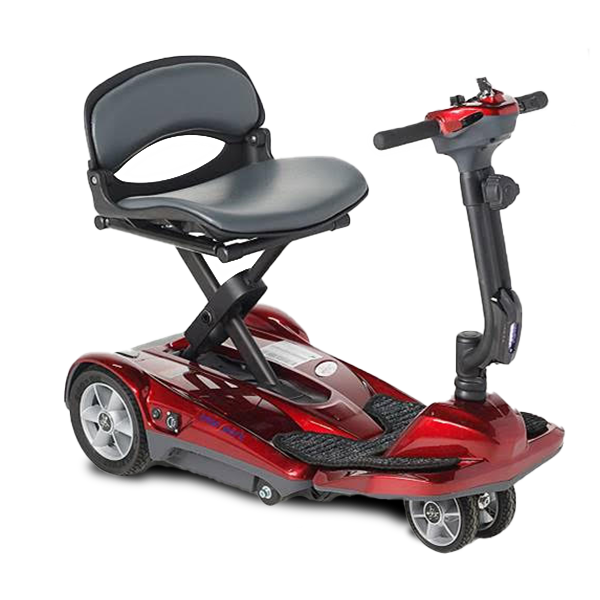

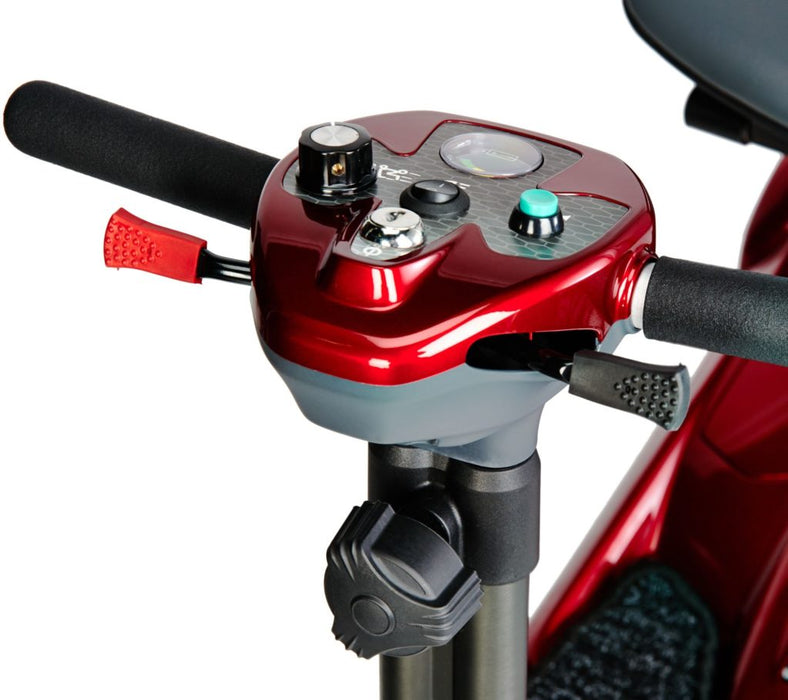

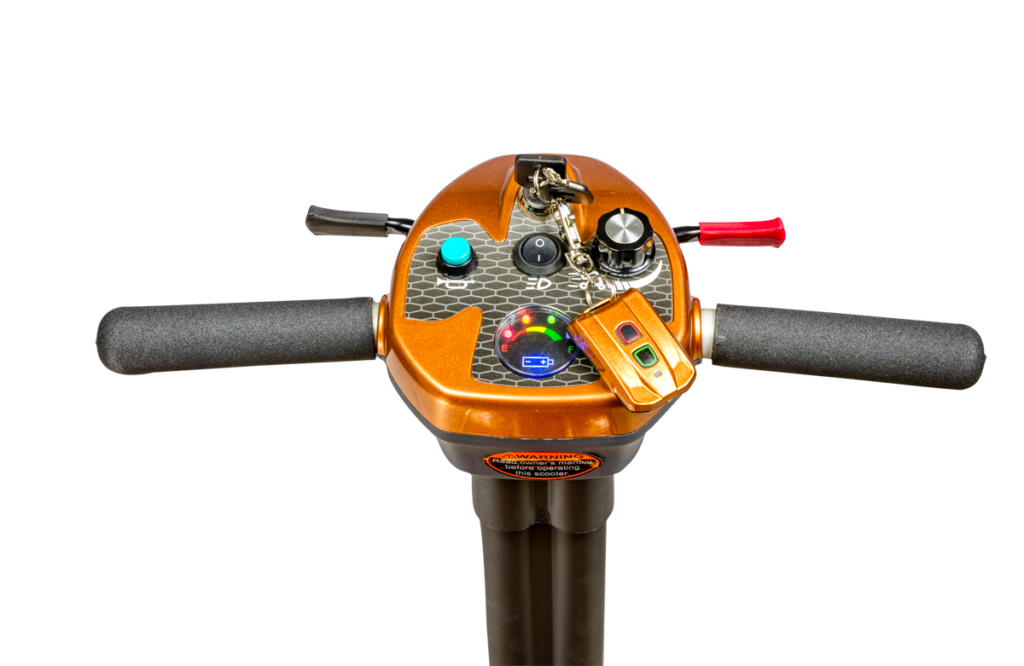

The EV Rider Transport AF+ scooter automatically folds up with your handheld remote. With the push of a button, it automatically folds in seconds! Approved for airline travel, the S19AF is equipped with a high-capacity lithium battery and weighs just 49 lbs, making it perfect for travel on planes, trains, and cruise ships. Due to its ultra-tight turning radius, this compact scooter offers great maneuverability in narrow spaces. It features a height-adjustable tiller, LED headlight, and dual hand two-way throttle control. It can be stored virtually anywhere and easily fits in the trunk of most automobiles. Just press the button and watch this innovative scooter unfold!
| Overall Length |
33.5″ in / 85cm |
| Overall Width |
16.5″ in / 42 cm |
| Overall Height – at Maximum Tiller Height |
33.5″ in / 85cm |
| Overall Height – at Minimum Tiller Height |
30″ in / 76cm |
| Legroom – Floorboard Length x Width |
17″ in / 43 cm |
| Deck Height – Floorboard to Floor |
4.8″ in / 12 cm |
| Ground Clearance |
1.4″ / 3.6 cm |
| Turning Radius |
31″ in / 79 cm |
| Folded Overall Length |
30” / 76 cm |
| Folded Overall Width |
16.5″ / 42cm |
| Folded Overall Height |
17.7” / 45 cm |
| Weight with 25.2V 10.5Ah Li Ion Battery |
49 lbs / 22 kgs |

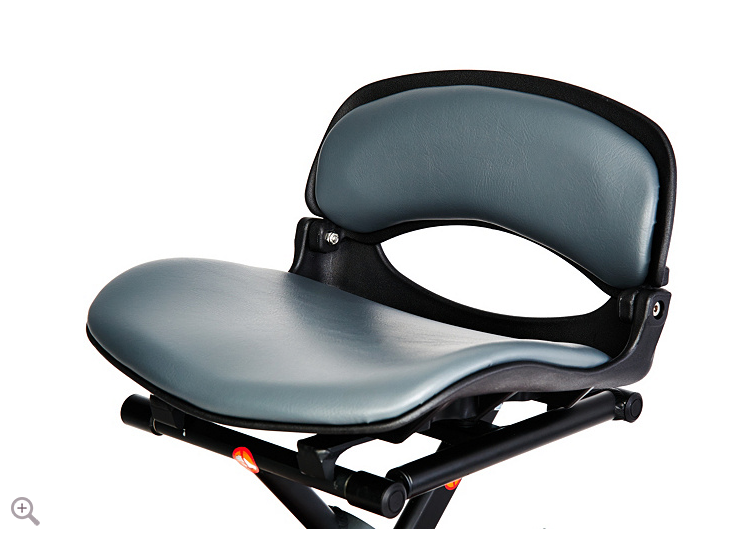

| Seat Type |
Folding Mobility Seat |
| Seat – Width & Depth & Height |
15″ W x 12″ Depth x 9″H //38 cm x 30.5 cm x 23 cm |
| Seat – Cushion Thickness |
1″ in / 25 cm |
| Seat Height – Cushion to Deck |
15″ in / 38 cm |
| Seat Height – Cushion to Floor |
19.7″ in / 50 cm |
| Tire Type |
Solid Tires |
| Rim Type Rear |
Industrial Plastic |
| Rim Type Front |
Industrial Plastic |
| OEM Spec Rear |
N/A |
| Outside Diameter Rear |
8″ / 20 cm |
| Tire Width Rear |
2″ / 5 cm |
| OEM Spec Front |
N/A |
| Outside Diameter Front |
6” / 15 cm |
| Tire Width Front |
1.4″ / 3.5cm |
| Battery Type |
25.2V 10.05Ah Lithium Ion x1 (included) |
| Brake System |
Electromagnetic |
| Climbing Angle – Maximum Recommended |
3 degree |
| Charger Type |
Off Board Li-Ion Charger
2.5 Amp 24 VDC, input: 110/240 Vac
|
| Charging Time |
4 – 6 hrs |
| Controller |
Dynamic R‐Series 50A |
| Driving Range |
Up to 8 miles* |
| Load Capacity |
250 Lbs / 115 kg |
| Motor & Drive Location |
180 watt 24 volt |
| *Speed – Maximum |
up to 3.8 mph * |

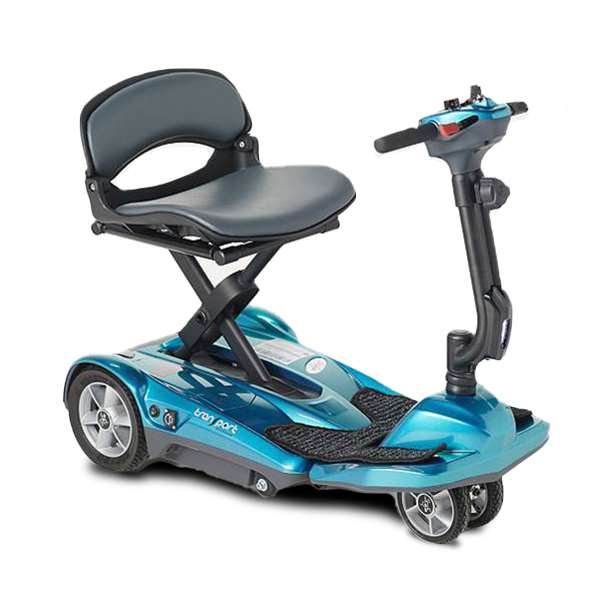

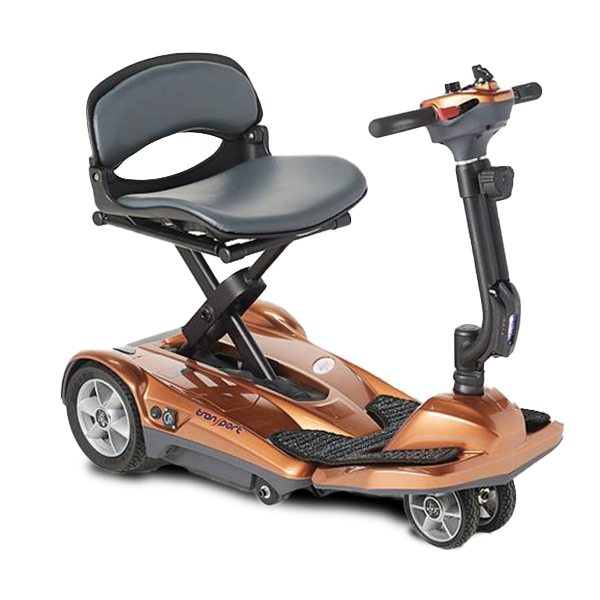

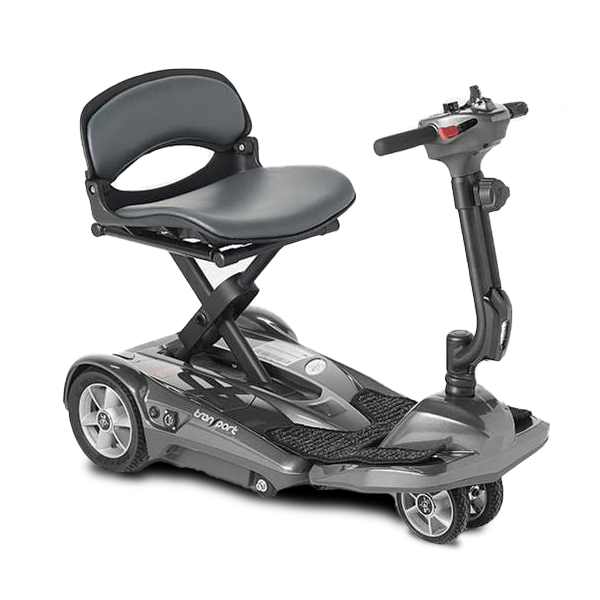

| Colors |
Blue, Copper, Burgundy, Silver |
| Tiller Type |
T-Shape Type |
| Throttle Control Type |
Pot Meter |
| Anti-Tipper Wheels-Rear |
Rear Casters – Standard |
